We've compiled the following steps to guide you through on how to set up SIP trunks on the Spearline platform.
- Contact your Spearline Customer Engagement Manager to enable SIP trunks on your platform.
- Ensure to whitelist our server IP's in countries where your SIP trunks are located. This allows Spearline to access your trunk(s) to generate the outgoing calls.
Please note:
The complete IP list can be found in the 'Origination Country' dropdown menu. When adding a SIP Trunk, this selection is a required field.
Navigation on platform:
Visit https://platform.spearline.com/
- Click on the 'Numbers' tab.
- Select 'SIP Trunk'.
Add a SIP Trunk:
- Click the Green + Add Sip Trunk button.
- In the new window, enter the required fields and then click the Blue Add button when done.
Required fields:
- Enter the trunk Name - mandatory
- Enter the termination IP Address - mandatory
- Enter the port - mandatory
- If 'Authorization' is selected rather than 'IP Trunk' then both Username and Secret are mandatory fields. All other fields in 'Add SIP Trunk' can be selected from a drop-down menu.

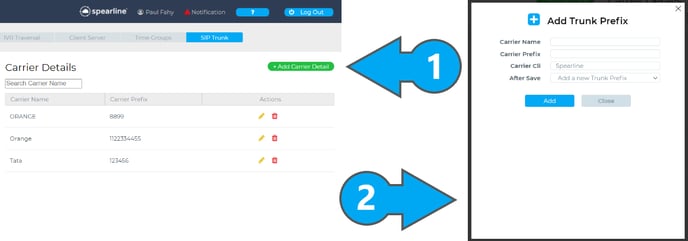

Add Carrier Detail:
- Click the Green + Add Carrier Detail button.
- In the new window, enter the required fields and then click the Blue 'Add' button when done.
Required fields:
- Enter carrier name - Mandatory
- Carrier Prefix - Not Mandatory, can be left blank
- Carrier CLI - Mandatory
